Fluted Board

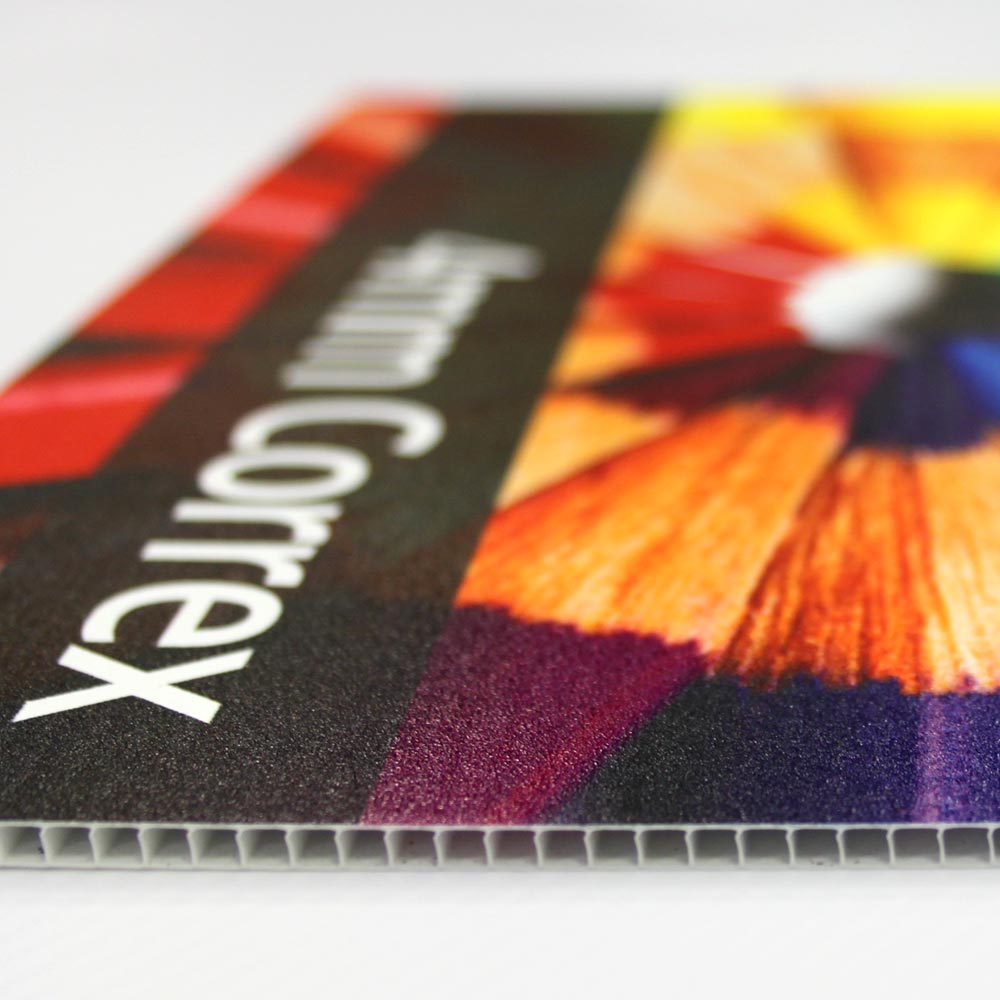

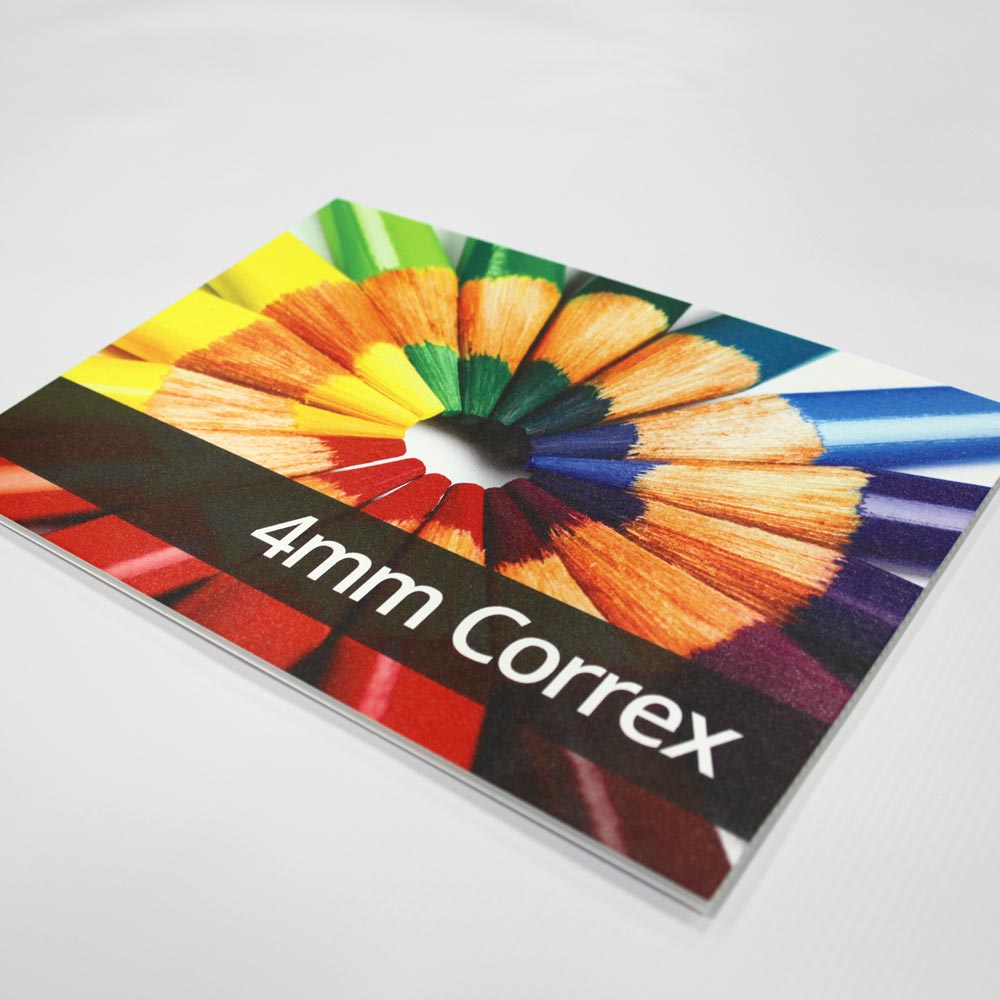

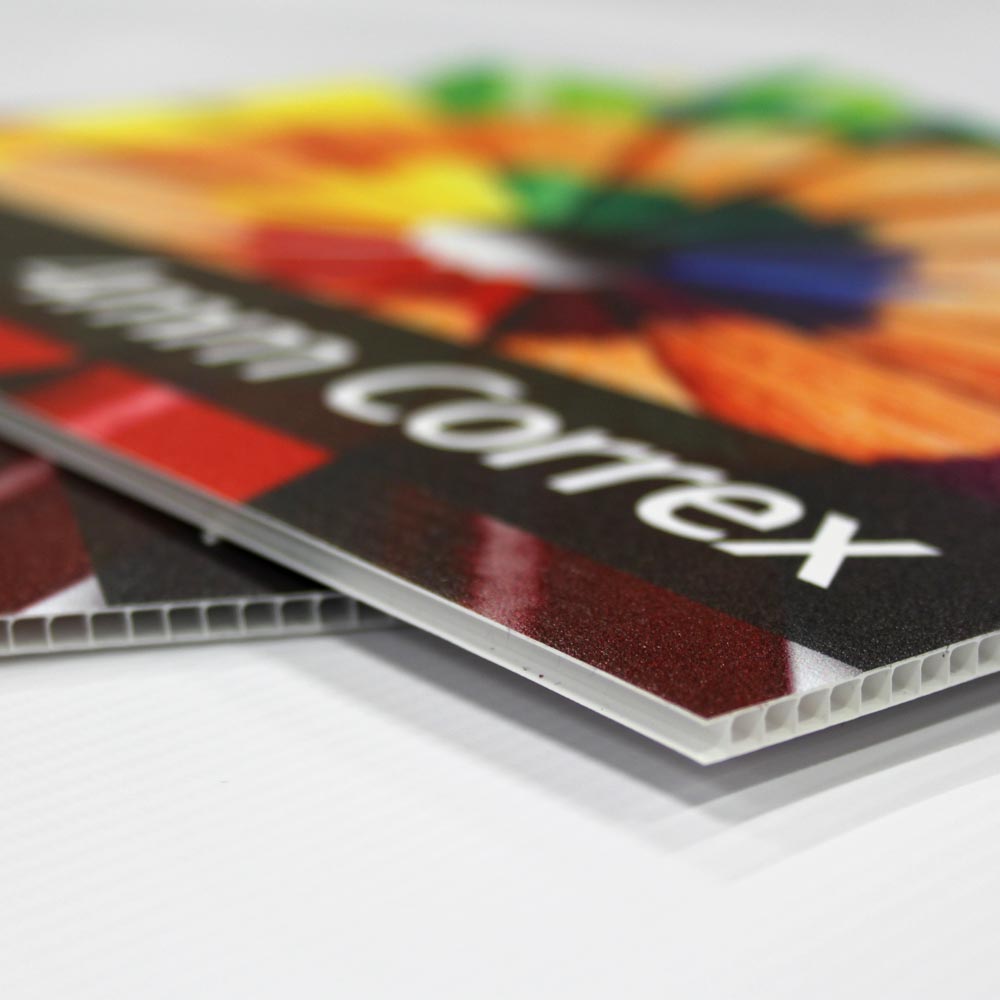

Formerly listed on our website as Correx. Lightweight and rigid twin-walled polypropylene with a corrugated centre. Commonly referred to as Correx, Corrugated Plastic, Corex.

Material Overview

• Printed direct to substrate with UV inks
• Trimmed sides as standard
• Light-weight and easy to install
• Flexible and durable, can be stuck, screwed, nailed or riveted to any suitable surface
• Suitable for both indoor and outdoor use
• Maximum board size: 2400mm × 1200mm (approx. just under 8ft × 4ft) in one piece

Although the maximum board size is 2.4m × 1.2m (approx. just under 8ft × 4ft) multiple boards can be printed and easily placed side-by-side to increase the image area.

Each item is printed and finished to your requirements.

Uses for Fluted Board

• Suitable for both indoor and outdoor use
• Estate agency boards

Finishes Available for Fluted Board

Below are the standard finishes available for this material.

• Trimmed to Size

  Boards will be cut to the size ordered with one of our Zünd cutting machines.

  There is no charge for this finish.

• Cut to Shape

  Boards will be machine-cut to required shape with one of our Zünd cutting machines.

  Please note, there is an additional cost of £25 for each shape cut on rigid materials.

• Gloss Lamination

  Also used as anti-graffiti.

  An additional charge of £9 per square metre applies.

  Dry-Wipe Lamination

  Designed solely for use with dry-erase marker pens. Has a glossy finish.

  An additional charge of £12 per square metre applies.

  Please note that matt lamination is no longer available.

• Drilled Holes

  Boards can have drilled holes added, which will be machine-drilled by our Zünds.

  Standard corner-only drilled holes can be ordered via our website for a nominal charge of £2 per item.

  Our standard setup is four 5mm diameter holes (one in each corner), positioned 15mm from the edges.

• Rounded Corners

  Boards can have rounded corners added, which will be machine-cut/routed by our Zünds.

  Standard 10mm radius for all four rounded corners can be ordered via our website for a nominal charge of £2 per item.

• Drilled Holes with Rounded Corners

  Boards can have drilled holes and rounded corners added together, which will be machine-cut/routed by our Zünds.

  See above for more details.

  This is a combined finish at a nominal charge of £4 per item.

Notice

Standard product tolerance is expansion of up to 5mm per linear metre

Please bear logistics in mind when planning your Fluted Board order and feel free to ask our advice. The rule of thumb is that pieces bigger than 2m × 1.5m will need to be delivered by dedicated courier or by large pallet which increases the delivery costs substantially. Please call for more information on this.
